Emporia Classic NEMA 14-50 48 Amp EV Charger | EMEVSE1-A-N-J
Out of stock
SKU
EMEVSE1-A-N-J
$429.00

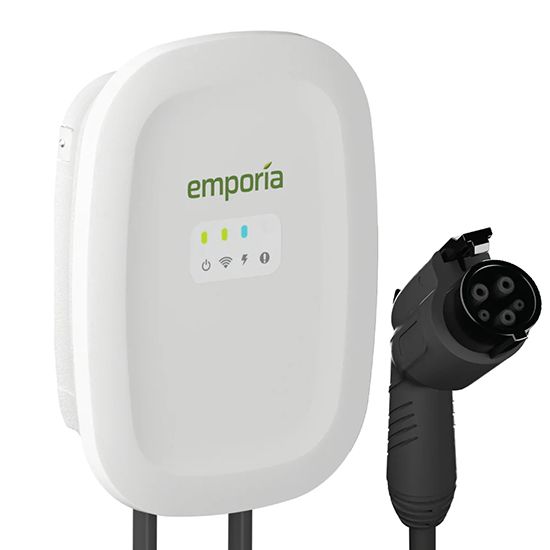

The Emporia Classic Level 2 electric vehicle charger is consistently voted one of the best EV Chargers on the market. With its 25’ cable and either a CCS / J1772 or NACS / Tesla connector, it can easily reach and charge any EV up to 40 amps with NEMA 14–50P or up to 48 amps with hardwired configuration. Its watertight NEMA Type 4 enclosure means it can be safely installed indoors or out.
Details
Swift and efficient Level 2 charging for all-electric vehicle models. Maximum power of up to 48 amps hardwired or 40 amps with a NEMA 14-50 outlet.
Features
- ENERGY STAR® Certified: Yes
Technical
-
Connector type
Type 1 (J1772)* (*non-Tesla vehicles) -
AC Power Output Rating
11.5kW (240V/48A) / 9.6kW (240V/40A) / 10kW (208V/48A) / 8.3kW (208V/40A) -
Input Voltage
208/240VAC 50/60Hz -
Dimensions
12.5" x 9" x 3.3" -
Charging Cable Length
25' ft -
User Interface
WiFi LED indicator, Charge Status LED, On/Off -
GFCI Protection
The National Electrical Code (NEC) now requires a GFCI breaker installed on any circuit using a 6-50 or 14-50 outlet. Since the Emporia EV Charger already has built-in GFCI protections, it can cause false/unwarranted tripping when installed on a line with GFCI protections also provided on the breaker.
| Manufacturer | Emporia |
|---|---|
| Manufacturer Model | EMEVSE1-A-N-J |
| ENERGY STAR® Certified | Yes |
| UPC | 850019360066 |
